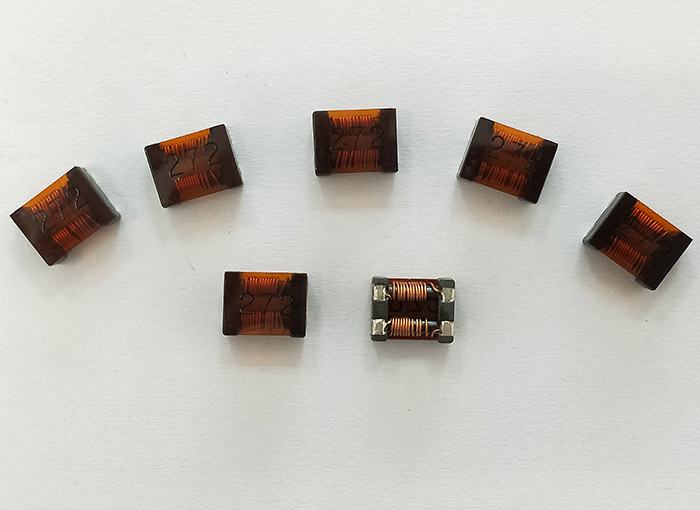

Feature
1. Have achieved miniaturization while keeping characteristics by adoption of
exclusive square type closed magnetic cores .
2. Due to the low profile design,it is suitable for surface mount.
3. High impedance characteristic has been a chieved a suprior effect for common
mode noise suppression.
4. This products have seria lized a large current product up to 10A corresponding
for various DC power lines.
Application
Common mode noise countermea sures for DC power lines of electronic
control equipment, multi-media equipment for automotives and various
electronic equipment power supply lines.
MC SF 0706Z 301
A B C D
A: Company code C: Dimension.
B: Series name D: Impedance 301=300 (Ω)
